User journey mapping is the practice of visually tracing a user’s interactions, thoughts, emotions, and pain points across a product or service timeline. Its primary role in UX design is to convert raw behavioural data into a shared, empathic narrative that reveals where experiences break down and where improvements will have the greatest impact. Collaborative journey mapping has become central to cross-functional alignment rather than individual design tasks alone.
The technique does more than document what users do. It surfaces the motivations and frustrations behind observable behaviour, giving product managers and designers a shared frame of reference that quantitative analytics cannot provide on its own. When a team can see the emotional arc of a user’s experience laid out across a timeline, prioritisation decisions become grounded in evidence rather than assumption.
- Identifies friction points and usability failures across the full product lifecycle
- Aligns marketing, design, engineering, and support teams around a single user narrative
- Translates quantitative data into an empathic story that guides design decisions
- Prioritises product improvements based on real user needs and business objectives
- Reveals the motivations behind user behaviour, not just the behaviour itself
What makes up a user journey map?
A well-constructed user journey map contains several interdependent components, each contributing a distinct layer of insight. Strip out any one of them and the map loses its ability to drive decisions.
The user persona sits at the foundation. It defines whose experience is being mapped, grounding the entire exercise in a specific, research-backed profile rather than a composite fiction. Alongside the persona, the scenario sets the context: what goal is the user trying to achieve, and under what circumstances? These two elements determine the scope of everything that follows.
The timeline then structures the map from left to right, typically moving through stages such as awareness, consideration, acquisition, use, and retention or exit. Within each stage, the map captures touchpoints (the specific moments where the user interacts with the product or service), actions (what the user does), and channels (whether that interaction happens via a website, app, phone call, or in person). The GOV.UK Service Manual recommends colour-coding these elements during collaborative workshops to keep the structure legible across large teams.
The emotion curve is arguably the most diagnostic element. Plotted as a line running beneath the timeline, it shows where users feel confident, frustrated, delighted, or confused. Dips in the curve point directly to friction; peaks reveal what the product already does well and should protect. Alongside emotions, the map records pain points explicitly, then translates them into opportunities for improvement. Finally, ownership assigns each opportunity to a team or individual, preventing the map from becoming a document that generates insight but no action.
How does a user journey map differ from related mapping tools?
The term “journey map” is often used interchangeably with customer journey map, service blueprint, empathy map, and user flow diagram. They are related but distinct, and choosing the wrong tool for a given problem wastes time and produces misleading outputs.
A user journey map focuses on a specific user persona moving through a defined scenario. It is human-centric, narrative in structure, and concerned with the emotional and cognitive experience of that individual. A customer journey map shares much of this structure but tends to be broader in scope, often covering the full commercial relationship between a customer and an organisation across multiple products or channels. The distinction matters when scoping a project: a user journey map suits a product team investigating a specific workflow, while a customer journey map suits a marketing or CX team examining the entire customer lifecycle.
A service blueprint goes further still. It maps not only what the user experiences but also the internal processes, backstage operations, and support systems that deliver that experience. Where a journey map asks “what does the user feel and do?”, a service blueprint asks “what does the organisation need to do to make that happen?” The two are complementary: choosing between them depends on whether the visualisation goal is user experience, service operations, or both.
An empathy map operates at a finer grain, focusing on a single moment or interaction rather than a timeline. It captures what a user says, thinks, does, and feels in that moment, making it useful for deepening understanding of a specific touchpoint rather than mapping an end-to-end experience. A user flow diagram, by contrast, is purely structural: it shows the sequence of screens or steps a user moves through, with no emotional or motivational layer.

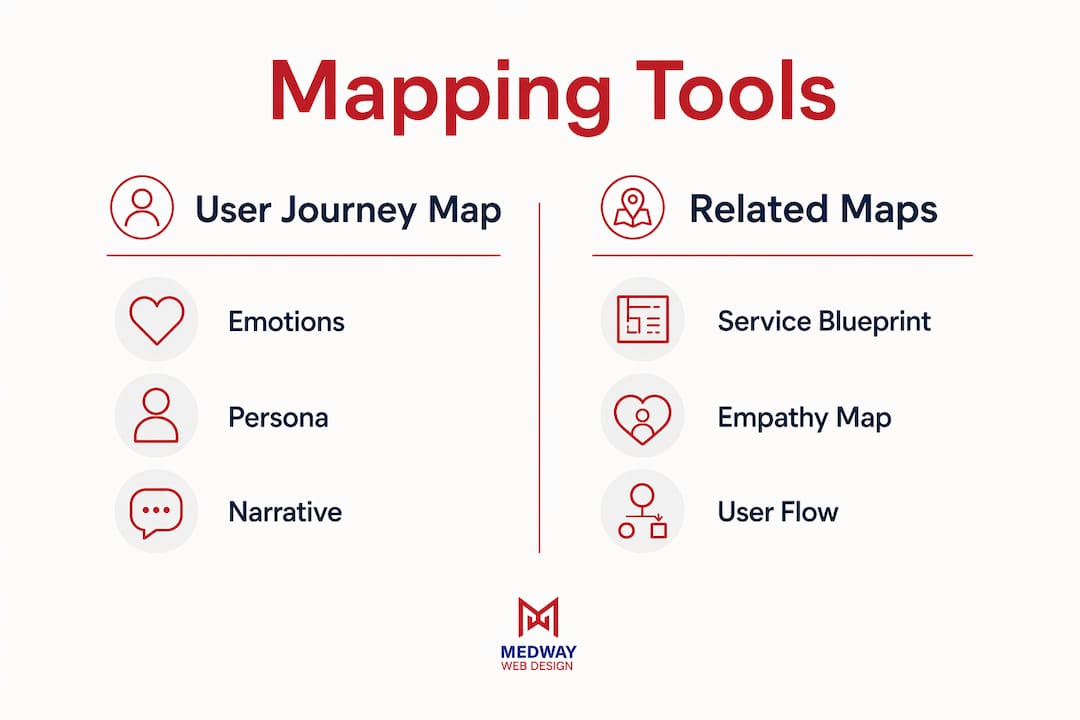

| Map type | Primary focus | Scope | Best used for |
|---|---|---|---|
| User journey map | User emotions, actions, pain points | Single persona, defined scenario | Identifying friction in a specific workflow |
| Customer journey map | Full commercial relationship | Broad, multi-channel | CX strategy, marketing alignment |
| Service blueprint | Internal processes + user experience | End-to-end service delivery | Operational redesign, service improvement |
| Empathy map | Thoughts, feelings at a moment | Single touchpoint | Deepening insight into a specific interaction |
| User flow diagram | Screen or step sequence | Task-level | Navigation design, information architecture |
The UX and UI distinction is relevant here too: user flow diagrams belong firmly in the UI domain, while journey maps operate at the UX level, addressing experience quality rather than interface structure.
Which type of user journey map should you use?
The type of map a team builds should be determined by the problem they are trying to solve, not by habit or convenience. Using a future-state map when the team does not yet understand the current experience is a common and costly mistake.
- Current-state (as-is) maps document the experience as it exists today. Their purpose is diagnostic: they expose pain points, usability failures, and gaps between what the product promises and what users actually encounter. These maps are the starting point for any redesign or improvement initiative.
- Future-state (to-be) maps envision the experience as it should be after improvements are made. They function as vision documents, aligning teams on a shared target and informing feature roadmaps. Current-state maps diagnose existing pain points, while future-state maps act as guides toward the ideal product experience.
- Broad-scope maps cover the full user lifecycle, from first awareness through to long-term retention or churn. They are suited to strategic planning and stakeholder communication, where the goal is to understand the overall shape of the experience rather than the detail of any single stage.
- Narrow-scope maps zoom into a specific workflow or interaction, such as the onboarding process or the checkout flow. They provide the granularity needed to make precise design decisions and are typically produced by product teams working on a defined feature area.
- Day-in-the-life maps step back from the product entirely and document how the user’s broader daily context shapes their needs and behaviours. These are particularly valuable in the early stages of product discovery, when teams need to understand the environment their product will enter rather than the product itself.
- Experience maps are the most general form, capturing a human experience independent of any specific product or service. They are useful for identifying unmet needs and market opportunities before a product has been defined.
Selecting the right type is a function of three questions: whose experience is being mapped, what stage of the design process the team is in, and what decision the map needs to support.
How to create a user journey map: a practical process
Building a user journey map that actually drives decisions requires discipline at every stage. The most common failure mode is producing a visually polished map that reflects the team’s assumptions rather than real user behaviour. Relying on user research rather than internal assumptions prevents this and ensures the map reflects genuine user challenges.
1. Define the goal and select the persona
Start by establishing what question the map needs to answer and which user it will represent. A map without a clear goal tends to sprawl, capturing everything and prioritising nothing. The persona should be grounded in qualitative research: interviews, contextual enquiry, or diary studies, not demographic guesswork.
2. Conduct user research
Gather data through user interviews, usability testing sessions, support ticket analysis, and behavioural analytics. The GOV.UK Service Manual recommends speaking to a range of users to capture the full breadth of events, transactions, and related services they encounter. This research forms the evidential backbone of every element in the map.
3. Identify touchpoints and channels
List every point at which the user interacts with the product or service, and note the channel through which each interaction occurs. This step often surfaces touchpoints the team was unaware of, particularly those involving third-party services, offline interactions, or support contacts.
4. Map emotions and pain points
Plot the emotion curve across the timeline, drawing on direct user quotes and observed reactions from research sessions. Identify where the curve dips sharply: these are the moments that most urgently need design attention. Record pain points explicitly, with supporting evidence from the research rather than team inference.
5. Identify opportunities and assign ownership
Convert each pain point into a specific opportunity for improvement, and assign ownership to a team or individual. A journey map without an action plan is an ineffective document; the real value lies in the opportunity identification and team alignment that follow the mapping exercise.
6. Build and validate collaboratively
Use a collaborative workshop format to build the map with representatives from design, product, engineering, and customer support. Tools such as Figma support real-time collaborative mapping and allow teams to iterate on the visual structure without losing the underlying data. Validate the completed map by sharing it with users and with colleagues who observed the original research sessions.
Pro Tip: Treat the journey map as a living document rather than a project deliverable. User behaviour evolves, products change, and a map that accurately reflected the experience twelve months ago may now be misleading. Schedule a quarterly review to update the map against new research and analytics data.
How MedwayWebDesign applies journey mapping in UK design practice
MedwayWebDesign integrates user journey mapping as a core method in client projects, using it to align user needs with measurable business objectives from the outset of each engagement. Rather than treating the map as a deliverable to be produced and filed, the agency uses it as a working document that shapes design decisions throughout the project lifecycle.
In practice, this means conducting user research before any visual design work begins, building current-state maps to expose friction in the existing experience, and then developing future-state maps to align the client on the target experience. For UK-based clients operating across multiple channels, including web, mobile, and in-store, the mapping process frequently surfaces touchpoint gaps that neither the client nor their users had previously articulated.
The business case for this approach is well supported. Companies with formal journey management programmes enjoy a 54% greater year-over-year marketing ROI and 3.5 times more revenue from referrals compared to those without. For MedwayWebDesign’s clients, the practical expression of this is improved conversion rates, reduced support volume, and higher user satisfaction scores following redesign work grounded in journey mapping.
- Conduct research-first mapping before any visual design begins
- Build current-state maps to expose friction, then future-state maps to align on the target experience
- Use collaborative workshops to ensure client stakeholders understand and own the findings
- Assign clear ownership to every opportunity identified in the map
- Update maps at defined intervals to reflect product changes and new user research
The interaction design principles that underpin MedwayWebDesign’s work are directly informed by journey mapping outputs: the agency’s design decisions on navigation structure, content hierarchy, and interaction patterns are traceable back to specific pain points and opportunities identified during the mapping process. This connection between research and execution is what distinguishes user-centred design from aesthetics-led design. For teams looking to deepen their understanding of how journey mapping fits within a broader product development process, a customer journey mapping guide provides useful strategic context.
Key takeaways
User journey mapping drives better design decisions by grounding them in real user behaviour, emotional data, and cross-functional alignment rather than internal assumptions.
| Point | Details |
|---|---|
| Collaboration is central | 64% of UX teams build journey maps collaboratively, making team alignment as valuable as the map itself. |
| Research over assumption | Maps built on user research rather than internal assumptions reflect genuine challenges and produce reliable design priorities. |
| Map type determines value | Current-state maps diagnose existing problems; future-state maps guide the target experience and inform feature roadmaps. |
| Action plan is mandatory | A map without assigned ownership and follow-up actions produces insight but no improvement. |
| Living document, not a deliverable | Treating journey maps as continuously updated documents prevents them from becoming obsolete as products and user behaviours evolve. |
